Laser engraved ceramic plate

DesignFind

Design File

S1Whiteceramicplatebigfootpaintedwithtio.xcs

Summary

Here is a fun project using a white ceramic plate. The process uses a Titanium Dioxide mixture painted on the plate prior to engraving. Hope you give it a try and enjoy.

Product Info

Software: xTool Creative Space
Machine: xTool S1
Material used: White ceramic plate, White chalk paint, Titanium Dioxide, Food coloring.
Difficulty level: Beginner
Source: DesignFind

Instruction

Step:

The idea was to engrave a picture on a plate.

Step 1 : Clean engraving area with 91% Isopropyl Alcohol.

Step 2 : Mix Titanium Dioxide solution. For mine I use 2 parts white chalk paint, 1 part Titanium Dioxide, 6 drops of water and a food coloring of your choice. Stir until completely mixed.

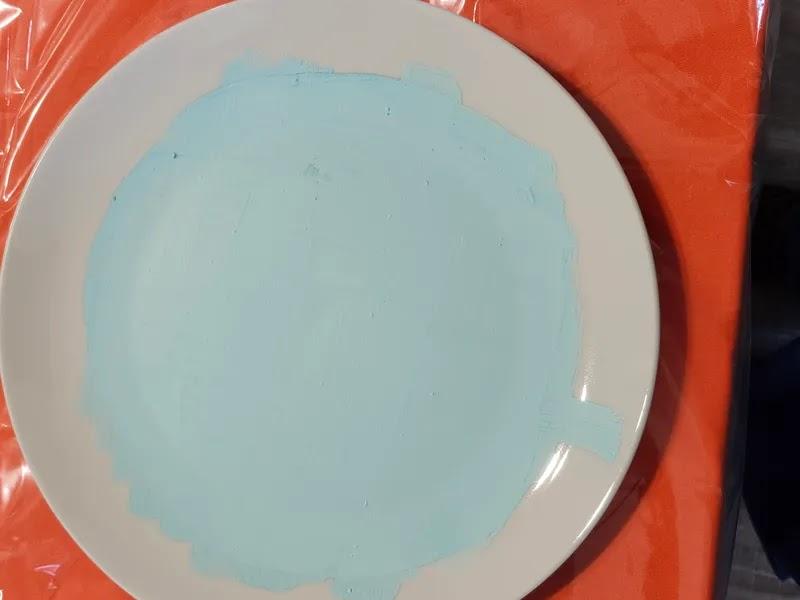

Step 3 : Paint 2 light even coats of Titanium Dioxide mixture to the engraving area. I paint 1 coat one direction and then cross it with the 2nd coat. Allow to dry completely.

Step 4 : Import your image into xcs and prepare settings.

Step 5 : Place your plate in your laser and setup for engraving.

Step 6 : Start process and sit back and watch the magic happen.
